Precision Machined Parts for Labeling Machines

Engineered labeling machine parts for high-speed accuracy and stable web handling. ZSCNC delivers custom machining, strict runout control, and premium surface finishes with reliable, on-time delivery.

  • Tight Tolerance Tracking
  • Stable Runout Control
  • Anti-Stick & Wear Coatings
  • Prototype to Production Line

Parts for Labeling Machines

ZSCNC specializes strictly in high-precision machined components and custom assemblies—not complete machinery. Our manufacturing focus is on repeatable quality and tight-tolerance runs, consistent with the capabilities described on our About Us page. We support custom machining from your 2D/3D drawings and precise reverse engineering from physical samples, helping equipment OEMs and plant maintenance teams eliminate labeling bottlenecks.

  • Labeling Heads & Peeling Components

    Engineered for precise label applicator alignment to eliminate web stretching, tracking errors, and high-speed registration drift.

    Typical input: 2D/3D prints, worn OEM samples, or setup photos

  • Drive Shafts & Guide Rollers

    Manufactured with strict concentricity and optimized surface roughness to prevent tension spikes and label backing breakage.

    Typical input: Detailed engineering drawings or physical shaft samples

  • Pressure Wheels & Rubber-Coated Cores

    Wear-resistant, anti-sticking roller cores that ensure uniform pressure distribution for bubble-free and wrinkle-free label placement, available as high-precision aluminum parts when required.

    Typical input: Core dimensions, coating specs, or custom 3D files

  • Star Wheels & Product Separators

    Custom-milled container handling components optimized for line-speed matching, minimizing container jams and line vibration.

    Typical input: Bottle/container drawings, CAD models, or physical samples

  • Mounting Plates & Positioning Blocks

    Provides rigid, consistent structural datums to shorten product changeover times and maintain calibration in harsh environments.

    Typical input: Mounting pattern dimensions or legacy mating parts

  • Precision Sub-Assemblies

    Pre-assembled modules built to your exact bill of materials (BOM), fully integrated with premium matching fasteners for drop-in line replacement.

    Typical input: Full assembly drawings and component specifications

Controlling Misalignment & Vibration

In high-speed packaging, minor mechanical deviations cause costly label registration errors. At ZSCNC, we translate labeling consistency into measurable manufacturing tolerances. By focusing on rigid assembly baselines, precise runout control, and tailored surface engineering, we supply rugged labeling machine parts that eliminate the root causes of label tracking drift and component wear. To learn more about how we focus on process discipline and engineering culture, visit our about us page.

  • Concentricity & Radial Runout Control: Tight tolerance machining on rotating components prevents tracking deviations, securing perfect label applicator alignment at maximum line speeds.
  • Precision Bearing Fits & Alignment Baselines: Maintaining absolute geometric consistency across mounting plates and shafts eliminates structural play, reducing mechanical vibration.
  • Engineered Surface Roughness & Friction Profiles: Controlled finishes on drive rollers and pull rollers guarantee uniform web tension, preventing label web slippage or stretching.
  • Structural Rigidity for High-Speed Workloads: Heavy-duty material selection and stress-relieved machining ensure parts resist deflection under continuous, high-cycle acceleration.
  • Thermal Stability & Material Integrity: Specialized heat treatments guarantee that critical dimensions remain stable during long production runs, preventing drift from frictional heat.

By addressing these critical geometric and physical variables during the machining process, we help packaging lines eliminate high-frequency downtime, minimize material scrap, and maintain seamless label applicator performance.

Root Cause: Micro-variations in shaft runout or uneven drive roller friction cause the label web to wander off-center.

Engineering Solution: We implement strict cylindrical tolerances and custom surface finishes to ensure balanced web tracking and precise label placement.

Root Cause: Imperfect peel plate contours, sharp bevels, or worn guidance edges create excessive web tension and friction spikes.

Engineering Solution: Precision-ground radiuses and specialized wear-resistant coatings optimize the peel angle to ensure smooth liner separation without web breaks.

Root Cause: Mismatched pressure roller geometry, poor concentricity, or incorrect rubber-to-core bonding profiles cause uneven pressure distribution.

Engineering Solution: Co-axial machining of roller cores combined with precise outer diameter profiles guarantees uniform, flush contact across the entire container surface.

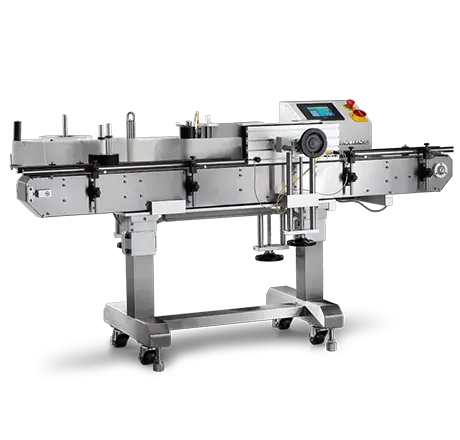

High-precision labeling machine parts engineered for stable label registration and runout control

At ZSCNC, we manufacture application-driven, high-precision wear parts and custom replacements that eliminate web drifting, label wrinkling, and high-speed registration errors. By understanding the mechanical failure modes of high-throughput packaging lines, we machine every component to precise geometric tolerances, ensuring integration into your existing labeling machinery.

Label Applicator Units
  • Vacuum Drums & Suction Wheels
  • Precision Pressure Rollers
  • Custom Hubs, Shafts & Bushings

  • Micron-level coaxiality for vibration-free rotation
  • Engineered non-stick and wear-resistant coatings
  • Dynamic balancing to prevent high-speed label throwing
Web Handling & Dispensing
  • Precision Machined Peel Plates
  • Low-Inertia Web Guide Rollers
  • Tensioner Arm Components

  • Ultra-sharp, burr-free dispensing edges to prevent liner tearing
  • Controlled surface roughness ($Ra$) for consistent web friction
  • Uniform edge chamfering to eliminate backing paper snags
Product Handling & Positioning
  • Custom Changeover Star Wheels
  • Infeed / Outfeed Guide Rails
  • Container Positioning Blocks

  • CNC profile precision matching exact container geometry
  • High-impact, low-friction engineering plastics (UHMW-PE/POM)
  • Strict dimensional repeatability for rapid toolless changeovers
Sensing & Structural Mounting
  • Adjustable Sensor Brackets
  • Multi-Axis Calibration Seats
  • Heavy-Duty Machine Mounting Plates

  • True hole-positioning and parallel tolerances for rigid assembly
  • Micrometer-level indexing for precise optical alignment
  • Fatigue-resistant threads to counter continuous machine vibration
Precision machined components and wear parts for automated labeling systems
Diagram detailing custom OEM-spec labeling machine parts, including vacuum drums, peel plates, star wheels, and heavy-duty sensor brackets.

Materials & Surface Treatments

In high-speed labeling applications, component degradation directly impacts label registration and uptime. ZSCNC addresses severe wear, glue accumulation, and strict sanitary demands through advanced material selection and surface engineering. We provide precision labeling machine parts optimized for continuous friction, corrosive washdowns, and aggressive adhesives, keeping your labeling lines running smoothly.

  • Stainless Steel (SUS304, SUS316L): Essential for food, beverage, and pharmaceutical labeling components requiring frequent washdowns and strict corrosion resistance.
  • High-Grade Aluminum Alloys (6061, 7075): Delivers low rotational inertia for high-speed vacuum drums, star wheels, and custom machined parts without sacrificing strength.
  • Hardened Tool Steels (D2, O1, H13): Tailored for high-wear areas like cutting blades and feed mechanisms to extend service life under continuous friction.
  • Advanced Engineering Plastics (POM, PEEK, PTFE): Ideal for low-friction label guides, wear strips, and star wheels where metal-to-container contact must be avoided.
  • Copper Alloys & Bronzes: Utilized for high-precision bushings and sliding assemblies requiring exceptional galling resistance and heat dissipation.
  • Vacuum heat treatment and precise aging processes to eliminate internal stresses and maximize core hardness.
  • Controlled precision grinding and mirror polishing to achieve tight geometric tolerances and optimize friction coefficients.
  • Dynamic balancing on high-RPM components to eliminate vibration and preserve label alignment at maximum line speeds.

  • Hard Anodizing (Type III): Provides a dense, scratch-resistant oxide layer on aluminum parts, perfect for high-speed web handling rollers.
  • Electroless Nickel Plating: Ensures perfectly uniform coating thickness on complex label applicator components, providing excellent wear and corrosion protection.
  • Hard Chrome Plating: Substantially increases surface hardness and lowers friction on drive rollers and shafts subject to repetitive mechanical stress.
  • PVD & Diamond-Like Carbon (DLC) Coatings: Extreme abrasion protection for critical peel plates and cutters, preventing premature edge rounding.
  • Anti-Stick & Non-Wetting Treatments: Specialized coatings designed to minimize adhesive buildup and glue transfer from labels, reducing maintenance frequency.

Precision surface engineering on clean-design labeling machine components

Technical Recommendations for Material & Coating Selection

  • Match Speeds to Material Weight: For ultra-high-speed labeling applications, specify lightweight aluminum or engineering plastics to reduce inertia and prevent label slippage during rapid start-stop cycles.
  • Analyze Adhesive Behavior: If your process utilizes hot-melt or aggressive pressure-sensitive adhesives, opt for plasma-sprayed or specialized anti-stick coatings to prevent residue buildup and frequent cleaning stops.
  • Design for Environment: In beverage or dairy packaging where chemical washdowns are standard, utilize 316L stainless steel or hard anodized finishes to prevent material pitting and oxidation.
  • Optimize Structural Geometry: Ensure part geometry accounts for heat treatment distortion; our engineering team assists with DFM reviews to balance material hardness with dimensional stability.
  • Full Traceability Support: To comply with stringent industry standards, we provide material certifications, heat treatment logs, and physical inspection reports upon request.

ZSCNC combines expert CNC machining with advanced surface engineering to deliver custom wear-resistant parts that solve common application bottlenecks. By tailoring the material and coating strategy to your specific operating speed, adhesive properties, and cleaning cycles, we help you achieve predictable, long-term labeling accuracy—this focus guides every project we support.

Workflow: Blueprint to Production

1

Requirement Input

Submit 2D/3D CAD drawings, physical samples, or worn OEM parts along with your speed, media, and washdown specifications.

2

DFM Review

Engineering evaluation of manufacturing feasibility, focusing on critical assembly datums, tight tolerances, and runout control.

3

Routing & Quote

Detailed processing plans outlining material selection, wear-resistant surface treatments, QA inspection points, and firm lead times for your CNC machining parts.

4

First-Article Trial

Prototype fabrication and mechanical testing to verify labeling registration accuracy and physical fit before volume commitment.

5

Batch Production

Scalable CNC machining coupled with rigorous in-process inspections to ensure consistent dimensional stability across all components.

6

Traceability & Delivery

Protective packaging, clear part identification, and drawing revision controls to streamline repeatable future reorders.

Fast-Response Engineering / Non-Disclosure Agreement Supported — ZSCNC leverages assembly-driven DFM and first-article validation to minimize labeling downtime and optimize your component sourcing.

QC & Tolerance Verification

At ZSCNC, we integrate critical dimensions, runout control, and surface finish requirements directly into our strict inspection plans. By ensuring your labeling machine parts match your exact drawing specifications, we eliminate assembly headaches and guarantee predictable line performance while aligning with our rigorous quality control standards.

Critical Dimension & Fit Inspection

We verify precise hole-shaft relationships and geometric datums against your engineering standards to ensure seamless slide-on or press-fit installation during assembly.

Runout & Concentricity Testing

Using precise metrology tools, we control radial and axial runout on shafts and rollers to prevent high-speed label drifting, wrinkling, or premature bearing wear.

Surface Roughness & Micro-Finish Control

Every peel plate edge and drive roller profile undergoes meticulous visual and profilometer checks to ensure ideal friction, precise web tension, and zero adhesive buildup.

Material Traceability & Heat Treat Reports

All physical components come with verifiable material certifications and heat treatment documentation to confirm structural integrity, wear resistance, and washdown readiness.

Inspection and quality control process

Each delivery batch is accompanied by complete documented support: including dimensional inspection recordsdrawing version identificationand custom anti-collision & anti-rust packaging protection. We strictly execute according to your technical drawings and on-site standards, ensuring parts arrive ready for direct installation.

Labeling Applications & Strategies

Different production environments present distinct challenges for labeling machinery, from aggressive chemical washdowns to friction-induced web wear. At ZSCNC, we map your specific operating conditions—such as line speed, hygiene requirements, and cleaning protocols—directly to our material selection and surface engineering processes, ensuring your custom machined CNC machining parts deliver long-term reliability.

Frequent high-pressure washdowns and constant moisture exposure demand strict corrosion resistance. We utilize high-grade stainless steel parts (like 316L) and specialized anodized aluminum parts to prevent oxidation, bacterial buildup, and material degradation.

Common parts: Food-grade guide rollers, corrosion-resistant pressure rollers, sanitary mounting plates.

Provide for optimization: Bottle/container geometry, washdown chemicals, line speed, humidity levels

High-speed label registration and strict FDA compliance require absolute geometric accuracy. Our manufacturing focus emphasizes tight concentricity tolerances and full lot traceability to prevent label misalignments on small vials, ampoules, and blisters.

Common parts: Ultra-precise label applicator shafts, custom vacuum drums, micro-adjustment brackets.

Provide for optimization: Container dimensions, label material, registration accuracy targets, certification needs

Contoured, flexible containers and frequent product changeovers require flexible tooling that reduces downtime. We machine lightweight, dimensionally stable engineering plastics and composites that resist structural wear while allowing rapid, toolless line switchovers.

Common parts: Custom star wheels, custom-contoured guide rails, quick-change positioning blocks.

Provide for optimization: Container 3D CAD data, label adhesives, changeover frequency, throughput rates

Continuous, high-velocity print-and-apply operations cause rapid abrasive wear from paper backing. We implement hard-coatings, case hardening, and precision ground surfaces to extend the service life of high-wear edges under high-tension web handling.

Common parts: Hardened peel plates, web tension guide rollers, heavy-duty pneumatic applicator components.

Provide for optimization: Web speed, daily duty cycles, liner material type, applicator stroke length

Micro-labeling on sensitive substrates leaves no room for surface defects, adhesive bleeding, or static buildup. We deliver ultra-smooth surface finishes, anti-static component coatings, and precise edge controls to ensure flawless, scuff-free label transfer.

Common parts: Non-marring label pressing pads, ESD-safe rollers, fine-pitch adjustment mechanisms.

Provide for optimization: Substrate sensitivity, static limits, label tolerance ranges, cleanroom classifications

Whether you are an OEM building high-speed labelers or a maintenance team sourcing replacement parts, ZSCNC aligns material selection, heat treatment, and surface engineering with your real-world line conditions.
Precision machined components and replacement parts for industrial labeling machines

Symptom/Possible Cause: Label feed jitter or positioning error caused by excessive radial runout, worn drive shafts, or compromised assembly reference datums.

Suggested Info to Provide: Assembly tolerance requirements, critical dimensions, or your current engineering drawings.

Feel free to upload photos or videos of the misalignment pattern.

Symptom/Possible Cause: Improper pressure applicator contact due to geometric mismatch, uneven pressure roller wear, or incorrect rubber durometer hardness.

Suggested Info to Provide: Label material specs, application line speed, and details on your current roller pressure settings.

Feel free to upload photos or videos of the creased labels.

Symptom/Possible Cause: Micro-abrasions or burrs on the peel plate edge, incorrect dispensing angles, or high friction build-up on web handling guides.

Suggested Info to Provide: High-resolution photos of your current peel components and specific wear zones.

Feel free to upload photos or videos of the failure point.

Symptom/Possible Cause: Material surface treatment mismatch allowing glue bleed to accumulate on vacuum drums, rollers, or side guides.

Suggested Info to Provide: Type of adhesive used, cleaning solvent details, and current component surface coatings.

Feel free to upload photos or videos of the sticky residue build-up.

Symptom/Possible Cause: Structural vibrations or dynamic tension variations caused by unbalanced guide rollers or loosely toleranced sensor mounts.

Suggested Info to Provide: Schematic diagram of the web path and operational tension parameters.

Feel free to upload photos or videos of the machine during high-speed operation.

Symptom/Possible Cause: Substandard concentricity, poor interface fits, or a lack of precise indexing on commercial-grade aftermarket parts.

Suggested Info to Provide: Physical measurements or side-by-side photos contrasting the OEM part with the failing replacement.

Feel free to upload photos or videos of the replacement components installed.

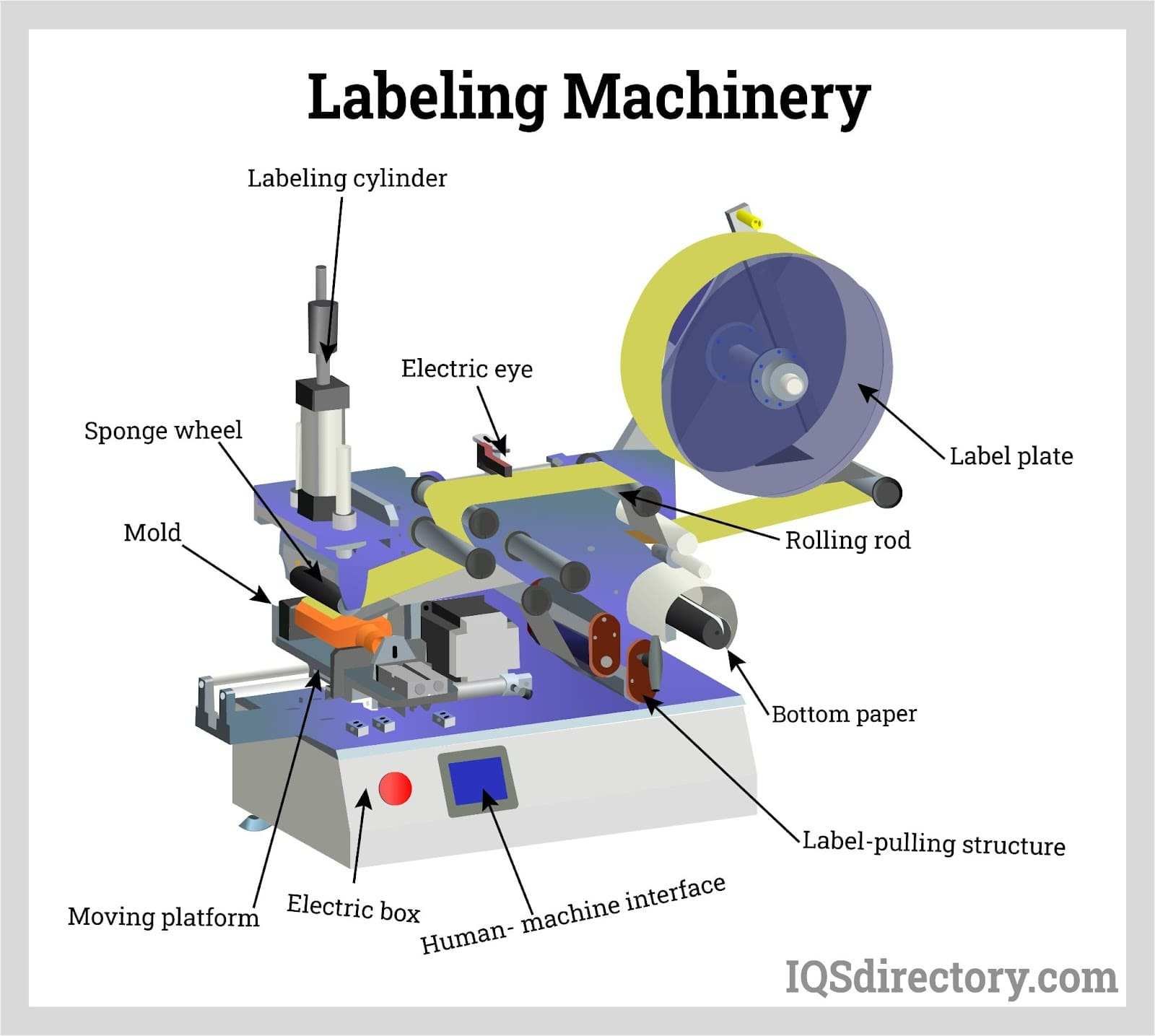

Diagram of parts of a labeling machine relevant for troubleshooting

At ZSCNC, we analyze your production line symptoms and mechanical conditions to isolate the root cause, delivering high-precision machined components optimized for long-term reliability.

Send Your Drawing for a Stable Part Plan

  • • 2D/3D technical drawings or physical sample photos
  • • Production speed, takt time, and specific label materials
  • • Adhesive types and washdown/cleaning environments (if applicable)
  • • Critical tolerances, runout limits, or surface finish requirements

    • Confidentiality guaranteed. NDA available upon request.
